Geomagic® Control X
Dimensional Inspection & Quality Control for the Shop Floor
Geomagic Control X turns any 3D scan into a complete dimensional inspection -- GD&T, deviation maps, golden-part comparisons, and interactive 3D reports. Three tiers (Essentials, Essentials Connect, Premium), three license types (ONA / OFD / NWA), one inspection workflow your QA team will actually use. License explainer →
Annual subscription -- renews yearly. Includes all updates and support during the term. Essentials and Essentials Connect are perpetual-license only (no subscription).
(248) 707-2950 · Free 14-day trial · Same-business-day quotes
Why Geomagic Control X
Beats Calipers and CMMs Alone
Master every feature with full 2D and 3D Geometric Dimensioning & Tolerancing. Control X measures size, form, orientation, and location to ASME Y14.5M -- evaluate straightness, flatness, concentricity, total runout, and every other characteristic on the print.
Designed to work seamlessly with data from any 3D scanner. Move from one device to another, mix data sources, and run the same inspection across multiple PCs -- no scanner lock-in.
Customizable reports anyone can read -- including non-engineers. Templates, charts, and color-mapped deviation displays. Export to 3D PDFs, web-viewable, or Excel for the shop floor and management alike.
Scan, Align, Inspect, Report.
One Project, Full Traceability.
Use any 3D scanner -- handheld, structured light, CMM, photogrammetry, or laser tracker. Or import existing STL, OBJ, PLY, E57, and dozens of native scanner formats.
Choose the perfect alignment technique for the job -- automatic feature-based alignment to best-fit to N methods, golden-part comparison, 6-DOF datum constraints, or interactive alignment.
Measure dimensions instantly. Quickly and accurately measure distance, angle, hole, slot, sphere, cone, freeform surface -- using either automated or manual workflows. 3D and 2D GD&T to ASME Y14.5M.
Generate clear, interactive 3D reports your QA team and customers can both read. Customizable templates, color-mapped deviation displays, 3D PDF and web-viewable outputs, and Excel exports.
Record It Once.
Inspect the Whole Production Run.
Automate the Entire Inspection
From a .CXProj Template.
Record your inspection project once in Control X's Model Manager. Every subsequent scan of the same part runs the saved workflow automatically -- batch inspect across multiple PCs, save clicks, save time, and get the same answer every shift. Full traceability is built in so audit findings always trace to the source data.
ONA · OFD · NWA
Which License Fits Your QA Team?
Every Geomagic Control X license is configured with one of three activation methods. The activation determines how the license is bound to a machine or shared across your team. The software capability is identical -- pricing and portability differ.
The license is tied to a single named workstation and activated online via Hexagon's license server. The lowest-cost option, available on every Control X tier including Essentials.
The license travels with a Geomagic-branded USB dongle. Plug it into any Windows machine and Control X runs -- no internet required after install. Same list price as ONA on Essentials Connect and Premium; the dongle hardware is sold separately ($550).
A pool of seats lives on a network license server (Hexagon RMS). Any team member checks out a seat as needed; the seat returns to the pool when they exit. Premium pricing reflects shared utilization. Not available on Essentials.
*All three activation methods deliver identical Control X functionality. Pricing source: Hexagon Geomagic Scan Software Price Book January 2026 USD. Suite bundles with Design X save up to 21% -- ask about the Design X / Control X Inspection Suite.
Choose Your Plan:
Essentials · Connect · Premium
Essentials
|
Essentials Connect
|
Premium
|
|
|---|---|---|---|
| Feature | Essentials | Essentials Connect | Premium |
| Scan + Import | |||
| Imports STL / OBJ / PLY / E57 (any 3D scanner data) | ✓ | ✓ | ✓ |
| Direct scanner integration (Hexagon, FARO, Scantech) | — | ✓ | ✓ |
| Probing module (CMM / portable arm) | — | ✓ | ✓ |
| Inspection Tools | |||
| 2D & 3D GD&T (ASME Y14.5M) | ✓ | ✓ | ✓ |
| Golden-part comparison | ✓ | ✓ | ✓ |
| Automatic / interactive alignment | ✓ | ✓ | ✓ |
| Advanced inspection wizards | — | — | ✓ |
| Airfoil & turbine analysis (blade, hub, flange) | — | — | ✓ |
| Reports + Automation | |||
| 3D PDF / web-viewable / Excel reports | ✓ | ✓ | ✓ |
| Customizable report templates | ✓ | ✓ | ✓ |
| Model Manager batch inspection (.CXProj) | — | — | ✓ |
| Licensing | |||
| ONA (Online Named) | ✓ | ✓ | ✓ |
| OFD (Offline Dongle) | — | ✓ | ✓ |
| NWA (Network Float) | — | ✓ | ✓ |
| Annual Subscription | — | — | ✓ |
| Perpetual License | ✓ | ✓ | ✓ |
Full Pricing Matrix -- January 2026 USD
| Tier & Mode | ONA | OFD | NWA |
|---|---|---|---|
| Control X Essentials (entry, ONA only) | |||
| License + 1st Yr Maintenance | $7,249 | — | — |
| Maintenance Renewal | $1,106 | — | — |
| Control X Essentials Connect (Essentials + probing) | |||
| License + 1st Yr Maintenance | $9,355 | $9,996 | $12,995 |
| Maintenance Renewal | $1,427 | $1,596 | $2,075 |
| Control X Premium (Professional) | |||
| Annual Subscription | $5,520 | $5,520 | $7,176 |
| License + 1st Yr Maintenance | $16,727 | $16,727 | $21,745 |
| Maintenance Renewal | $2,552 | $2,552 | $3,317 |
| Add-Ons | |||
| Geomagic USB Control X Dongle (required for OFD) | $550 (one-time hardware purchase) | ||
| Control X Training -- Classroom (2 days, per person) | $1,050 | ||
| Control X Training -- Onsite (2 days, up to 6 people) | $5,250 | ||
*Prices: Hexagon Geomagic Scan Software Price Book, January 2026 USD. Education licensing for Control X Premium is available at ~30% off (Essentials & Essentials Connect excluded). Suite bundle with Design X starts at $30,404 ONA -- ask about the Design X / Control X Inspection Suite.

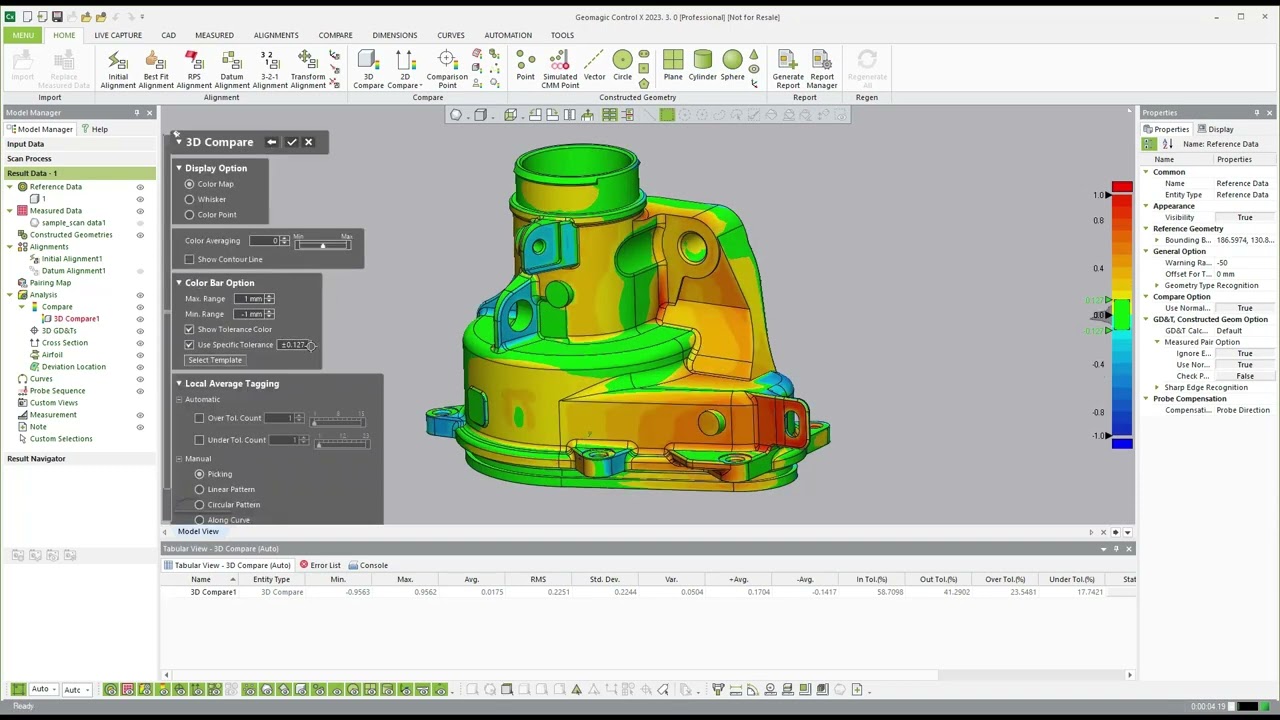

Geomagic Control X in Action—
See a Complete Inspection Workflow
Official demo by Geomagic (@GeomagicSoftware on YouTube). Click to launch full-screen.
Geomagic Control X --
Full Spec Sheet
| Software Category | 3D Inspection / Dimensional Quality Control |
| Plan Tiers | Control X Essentials · Essentials Connect · Premium (Professional) |
| Activation Methods | ONA (Online Named) · OFD (Offline Dongle) · NWA (Network Float) |
| License Modes | Annual Subscription (Premium only) · Perpetual License + 1st Yr Maintenance · Annual Maintenance Renewal |
| GD&T | Full 2D & 3D, ASME Y14.5M and ISO equivalents |
| Operating System | Windows 10 / 11 (64-bit) |
| Processor | Intel Core i7 or Xeon (recommended) |
| RAM | 16 GB minimum -- 32 GB+ recommended for large scans |
| Graphics | Dedicated NVIDIA / AMD with OpenGL 4.1+ support |
| Storage | 10 GB free for installation · SSD strongly recommended |
| Input Formats | STL, OBJ, PLY, XYZ, PTX, E57, ZPR + dozens of native scanner formats |
| Probing Hardware (Connect / Premium) | Hexagon, FARO, Scantech direct scanner / probe integration |
| Report Formats | 3D PDF · Web-viewable HTML · Excel / CSV · Customizable templates |
| Trial | 14 days -- free, full-featured activation |
| Training | Classroom $1,050/person (2 days) · Onsite $5,250 (2 days, up to 6 people) |
| USB Dongle (OFD only) | $550 one-time hardware purchase (CT-DONGLE) |
| Authorized Reseller | Rev1 Technologies -- authorized Hexagon / Oqton partner, USA |
| Pricing Effective | January 2026 USD price book |
You're Not Just Buying Inspection Software.
You're Getting a QA Implementation Partner.
Sold and supported by Rev1 Technologies. Built by Hexagon / Oqton.
Rev1 Technologies is an authorized Hexagon / Oqton reseller for the full Geomagic software lineup. We sell Control X licenses across all three tiers and three activation methods, configure your network license server if needed, and provide on-site or remote training plus first-inspection support -- so your QA team is delivering 3D PDF reports on real parts on day one. We use Control X in our own metrology lab in Auburn Hills, Michigan.
USA-based authorized reseller for the full Geomagic family -- Design X, Control X, For SolidWorks, and Wrap.
We use Control X in our own metrology lab. Real GD&T and inspection advice from production experience.
Classroom ($1,050/person, 2 days) and onsite ($5,250 for 6, 2 days) training, plus guided first-inspection support.
Subscription / perpetual, ONA / OFD / NWA -- we configure your network license server (Hexagon RMS) for NWA setups.
Compare Across the
Geomagic Software Lineup
Frequently Asked --
Geomagic Control X
What's the difference between Essentials, Essentials Connect, and Premium?
Essentials ($7,249 perpetual, ONA only) is the entry tier -- full GD&T inspection from imported scan data. Essentials Connect ($9,355 ONA / $9,996 OFD / $12,995 NWA perpetual) is Essentials plus the probing module for direct CMM and portable-arm data capture, with all 3 license types. Premium ($5,520/yr ONA-OFD or $7,176 NWA subscription; $16,727 / $21,745 perpetual) is the full toolset -- advanced inspection wizards, airfoil/turbine analysis, Model Manager batch automation, and direct scanner integration.
What's the difference between ONA, OFD, and NWA?
ONA (Online Named) ties the license to one computer via online activation -- lowest cost, no hardware key. OFD (Offline Dongle) uses a USB dongle so the license travels to any machine; the dongle is sold separately at $550. NWA (Network Float) hosts a pool of seats on your license server so the QA team shares licenses concurrently -- premium pricing reflects shared utilization. Essentials is ONA-only.
Does Control X work with our existing scanner or CMM?
Yes -- all tiers import STL, OBJ, PLY, E57, and dozens of native scanner formats from any device. Essentials Connect and Premium add direct in-software control of Hexagon, FARO, and Scantech scanners and portable arms, so the probe and inspection both live in Control X.
Can I get a free trial before purchasing?
Yes. Geomagic Control X offers a 14-day fully-functional free trial. Request access through Rev1 -- we'll get you installer access plus a guided onboarding session so you see real inspection results on day one.
Subscription or perpetual license -- which is better?
Subscription (annual, Premium only) is lowest entry cost and includes updates and support during the term. Perpetual license + 1st year maintenance is a higher one-time investment ($7,249 to $21,745 depending on tier & license type); you own the license forever and renew maintenance only if you want continued updates. Essentials and Essentials Connect are perpetual-only.
What reports does Control X produce?
3D PDFs (interactive, viewable by non-engineers), web-viewable HTML, Excel/CSV, and customizable report templates with deviation color maps. Reports are auditable -- every dimension traces back to the source scan data.
Can I upgrade from Essentials to Premium later?
Yes. Control X is structured for tier upgrades. Contact Rev1 and we'll coordinate the upgrade with Hexagon -- applying any credit from your existing license toward the higher tier.
Do you bundle Control X with Design X for full reverse-engineering + inspection?
Yes. The Design X / Control X Inspection Suite combines reverse engineering and dimensional inspection at a bundle discount -- $30,404 ONA Pro suite vs. $38,767 buying separately. Suite maintenance renewal is $4,636/yr ONA. Education suites are also available.
