AESUBframe300mm Reference FrameA Rigid Reference Field Around Midsize Parts
Modular Reference Frame for Midsize-Part 3D Scanning

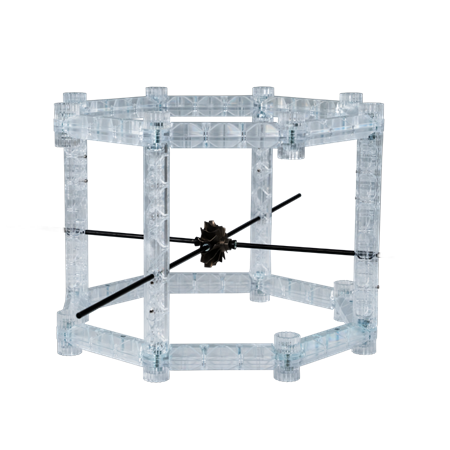

The AESUBframe 300mm builds a rigid, reusable reference field around midsize parts for fast, accurate 3D scanning. Fitted with AESUBdots, the modular carbon-fibre-reinforced frame gives the scanner a stable, known geometry of reference points — align and stitch captures without applying dots to the part itself. Lightweight, stiff and modular. Genuine AESUB, Made in Germany. Full details →
In stock in the USA — ships from Rev1. Questions? Call (248) 707-2950.
Genuine AESUB, Made in Germany. US Stock, Fast Shipping.
Authentic AESUB, supplied and supported by Rev1 Technologies from Auburn Hills, Michigan — we run a metrology and scanning lab and can set up your workflow. Not a re-labeled substitute.
Reference Geometry You Can Reuse.
For midsize parts, the AESUBframe surrounds the part with a rigid, dot-equipped reference field so your scanner aligns to a stable, known geometry — faster setup, repeatable results, and nothing stuck to the part itself.
A Fixed Reference Field, Not Dots on the Part.

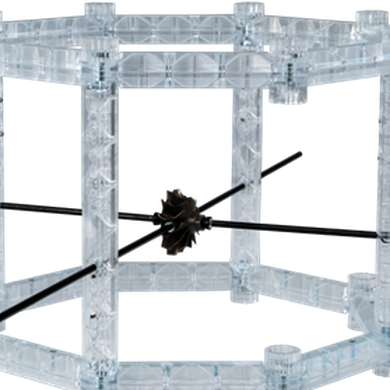

Position the part within the frame and the scanner reads its AESUBdots as a rigid, known reference geometry — align and stitch captures without sticking targets to the part. The carbon-fibre structure stays dimensionally stable for repeatable results.
AESUBframe 300mm — Details
WHY REV1 TECH
Reference Systems From the People Who Scan.
Rev1 Technologies runs a metrology and 3D-scanning lab in Auburn Hills, MI — so we stock AESUB and use it, and can set up your scan-prep workflow end to end.
We stock the AESUB range and the scanners it’s used with — buy from a team that can set up the whole workflow.
FAQ
Frequently Asked Questions
What is the AESUBframe for?
It builds a rigid, reusable reference field around a part using AESUBdots on a modular carbon-fibre frame — so your scanner aligns to a stable, known geometry instead of dots stuck to the part.
What size parts does the 300mm fit?
The 300 mm frame is sized for midsize parts. For small parts see the 200 mm frame, or the combo for both.
Do I still need AESUBdots?
The frame carries the reference dots; you fit AESUBdots to it. Rev1 can supply the frame and the right dots together.
Is it reusable?
Yes — a modular, dimensionally stable carbon-fibre structure built to be reused across jobs.
Which scanners does it suit?
Scanners that use reference targets to align/stitch captures. Tell us your scanner and we’ll confirm the setup.
Is this genuine AESUB?
Yes — genuine AESUB, Made in Germany, supplied and supported by Rev1 Technologies from Auburn Hills, Michigan, and held in US stock.
