HeyGears Reflex 2 Pulsing Release Resin TankPulsing Release System Component
Genuine OEM Replacement & Spare Tank for the Pulsing Release Module 2 — Reflex 2 / Reflex 2 Pro
The pulsing-release-rated resin tank that ships with the Pulsing Release Module 2 Kit. Sold standalone for replacement, spare-tank workflows, or running multiple resin chemistries in parallel without cross-contamination. Drop-in mount, OEM-grade film tension, optical-window tolerances matched to the Reflex 2 light engine. Full specifications →
Genuine HeyGears OEM accessory. Stocked in our US warehouse. HeyGears Material #23010300097.
Talk to a HeyGears specialist
Spare, Swap, or Replace —
Three Common Workflows
The pulsing-release film is rated for tens of thousands of layers, but production environments wear them out faster than the resin tank shell. When the film mounting on your existing tank is fatigued or the tank shell has resin-burn marks from prolonged use, this is the OEM replacement — same film mounting, same optical window, same fit.
Running a second tank lets you keep two resin chemistries staged at once — for instance, PAH270 high-temp parts in one tank and PAU20 tooling in another. No drain-clean-refill between jobs. Print, pop the tank out, swap the second one in, keep going. The biggest production-throughput gain a single accessory can deliver.
Shops running multiple Reflex 2 / Reflex 2 Pro printers keep at least one spare tank per resin chemistry to avoid downtime. If a tank gets damaged mid-job, the matched OEM spare slots in immediately and the print queue keeps moving.

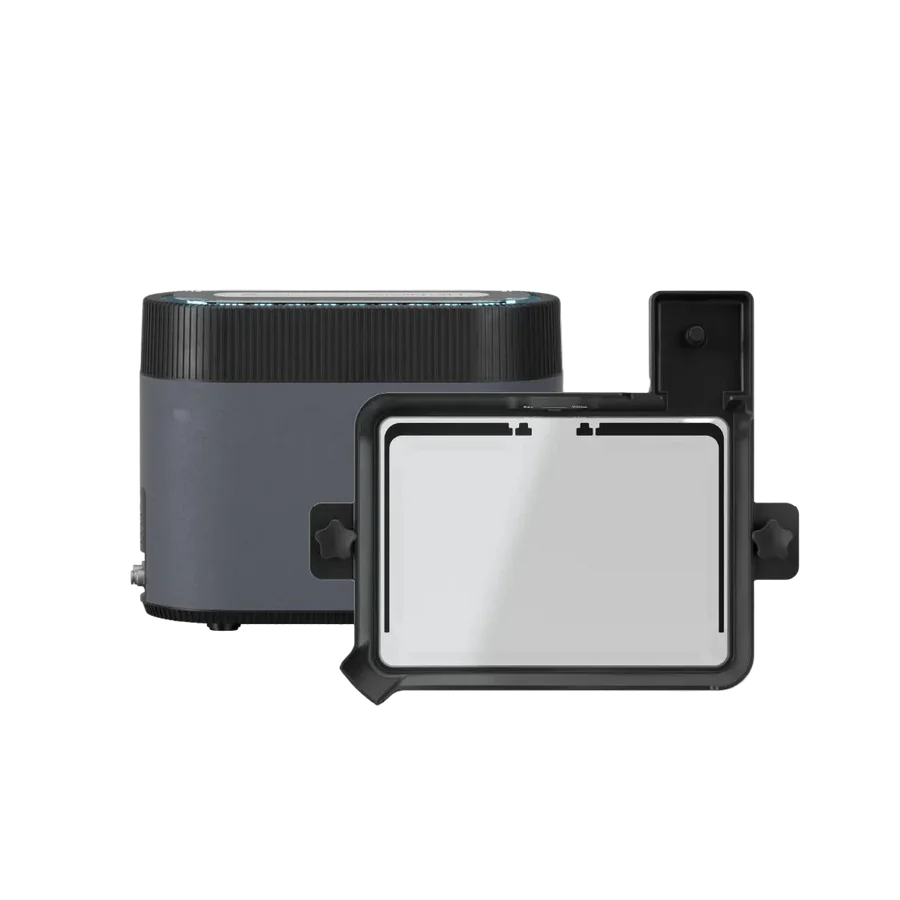

This Tank Only Works
With the Pulsing Release Module 2
This tank has the pulsing-release film mounting, gas-line port, and tolerance set to operate with HeyGears’ UltraCraft Pulsing Release Module 2 ($799 at Rev1, including this same tank). The standard Reflex 2 Regular Resin Tank ($119) physically mounts in the same chamber but cannot accept the pulsing motion — the film mounting and geometry are different.
If you don’t already own the Pulsing Release Module 2, buy the full PRM 2 Kit instead — it includes one of these tanks at the bundle price ($799 vs $799 + $239 separately).
Reflex 2 Series Only —
Other Printers Have Their Own Tank
This tank is engineered for the Reflex 2 generation chamber and the Pulsing Release Module 2. The original Reflex and Reflex RS / RS Turbo each have their own dedicated pulsing-release tanks — not interchangeable with the Reflex 2 series.
| HeyGears Printer | Compatibility | Correct Tank |
|---|---|---|
| UltraCraft Reflex 2 | ✓ Compatible | Reflex 2 Pulsing Release Resin Tank — this product |
| UltraCraft Reflex 2 Pro | ✓ Compatible | Reflex 2 Pulsing Release Resin Tank — this product |
| UltraCraft Reflex (original) | ✗ Not compatible | Pulsing Release Resin Tank (original Reflex) — $191 |
| UltraCraft Reflex RS / RS Turbo | ✗ Not compatible | RS Pulsing Release Resin Tank — $239 |
Which UltraPrint Resins
Run Through This Tank
These resins have viscosity, toughness, or temperature characteristics that require the pulsing-release setup to print reliably on the Reflex 2 series. This tank + the PRM 2 module is the only path to running them:
Standard modeling resins (PAS10, PARP10, PAU10, PAU11) also run cleanly through this tank with the PRM 2 active — you don’t lose resin compatibility by switching to pulsing release.
The water-washable PAWW family is formulated for standard release operation. The pulsing motion interferes with how PAWW resins set against the film and produces print artifacts:
For water-washable workflows, run the standard Reflex 2 Regular Resin Tank ($119) with the standard release setup — switch to this pulsing tank only when running engineering resins.
Reflex 2 Pulsing Release Tank —
Full Spec Sheet
| Vendor SKU | 23010300097 (HeyGears Material Number) |
| Brand | HeyGears |
| Product Family | UltraCraft Reflex 2 Series |
| Component Type | Pulsing-release resin tank (replacement / spare) |
| Compatible Printers | UltraCraft Reflex 2, UltraCraft Reflex 2 Pro |
| Required Module | UltraCraft Pulsing Release Module 2 (PRM 2) |
| Film Type | Pulsing-release rated film, OEM-tensioned |
| Optical Window | Tolerance-matched to Reflex 2 light engine (385 nm + visible) |
| Installation | Tool-free drop-in mount |
| Resins Required | PAC10, PAE10, PAU20, PAH270 (engineering resins must use PRM 2) |
| Resins Incompatible | PAWW10, PAWW20 (water-washable — use the Regular Resin Tank for those) |
| Bundle Source | Same tank that ships inside the Pulsing Release Module 2 Kit ($799) |
| Country of Origin | China (HeyGears, Guangdong) |
| Warranty | 12 months parts (HeyGears OEM) |
| Rev1 Price | $239 USD |
Authorized HeyGears Reseller
with Engineering Support
Sold and supported by Rev1 Technologies. Manufactured by HeyGears.
Rev1 is an authorized HeyGears reseller based in Auburn Hills, Michigan. We carry the full Reflex 2 / Reflex 2 Pro accessory lineup, stock it locally, and answer real questions about which parts are required for your resin chemistry, your print volume, and your production environment. We run HeyGears printers in our own additive lab.
Verified factory-fresh stock from HeyGears, with the full Reflex 2 / 2 Pro / RS accessory tree available through one channel.
We know which UltraPrint resins demand the PRM 2 setup and which need the standard tank. We use HeyGears in our own lab, so the advice comes from real production runs — not a spec sheet.
Stocked in Auburn Hills, Michigan. No vendor-direct lead times, no customs surprises — the part you order ships from our floor.
Pay over time with 4 interest-free Klarna payments at checkout, or roll the tank into a Reflex 2 / 2 Pro financing worksheet for longer terms.
PRM 2 Module, Replacement Films &
Compatible Resins
Frequently Asked —
Reflex 2 Pulsing Release Resin Tank
Does this tank work without the Pulsing Release Module 2?
No. This tank is engineered to operate with the pulsing-release motion the PRM 2 generates. Without the module installed, the tank still mounts physically but the pulsing function does nothing — you’d be running a pulsing-rated tank in standard release mode, which adds no benefit and means you bought the wrong tank for your setup. If you don’t own the PRM 2 yet, the PRM 2 Kit ($799) includes this tank.
Is this the same tank that comes with the PRM 2 Kit?
Yes — identical SKU (HeyGears Material #23010300097). The PRM 2 Kit ships with one of these tanks; this listing is for buying the tank standalone as a spare or replacement. Cost-wise, the standalone tank is $239; bundling it inside the PRM 2 Kit is more economical if you don’t already own the module.
Will it fit my original Reflex or Reflex RS?
No. This tank is dimensioned for the Reflex 2 generation chamber. The original Reflex uses the Pulsing Release Resin Tank ($191) and the Reflex RS / RS Turbo uses the RS Pulsing Release Resin Tank ($239). The compatibility table above maps each printer family to the correct tank.
Can I run PAWW10 or PAWW20 (water-washable) resin in this tank?
No. The water-washable PAWW family is incompatible with pulsing-release operation — it doesn’t set against the pulsing film correctly and produces print artifacts. For water-washable workflows, use the standard Reflex 2 Regular Resin Tank ($119) with the standard release setup.
When should I replace the tank vs. just the film?
Replace just the film when you see surface artifacts that match the film position (cloudy areas, repeat marks at the same XY) but the tank shell, optical window, and gas port look clean. Replace the whole tank when the shell has resin-burn discoloration, the optical window has scratches inside the resin chamber, or the film mounting has slipped. Replacement film is $143 for a 2-pack.
