Bambu Lab
H2S
More Build.
More Speed.
The Bambu Lab H2S is the largest-volume enclosed CoreXY printer in the H series — 340×320×340 mm, 120% larger than the X1C. A single-nozzle toolhead with the DynaSense PMSM servo (10 kg, 20 kHz), speeds up to 1,000 mm/s, built-in filament cutter, 350 °C nozzles, 65 °C actively heated chamber, and up to 24 filaments with parallel AMS units.
Bambu Lab H2S — Your Personal Manufacturing Hub.
Most Build Volume. Most Speed. Clean Engineering Stack.
340 mm Tall. Use the Whole Plate.
120% Larger Than the X1C. One Print Instead of Five.
The H2S build envelope is 340×320×340 mm — 120% larger than the X1C by volume. That extra Z height changes what you can print in a single run: a helmet liner that fits in one piece, a desk cable manager that covers a full-depth desk surface, a cosplay sword without visible seams. What previously required cutting a model into five pieces, printing each separately, then gluing them together can become one overnight job.
The bed heats uniformly across the full 320×340 mm surface. The flexible PEI build plate releases parts cleanly after cooling — no adhesive sprays, no bed separators, no warped corners on large-footprint parts.
Faster Output. Quieter Operation.
30% Faster Than the X1C, Under 50 dB
With top speed at 1,000 mm/s and acceleration up to 20,000 mm/s², the H2S prints typical jobs approximately 30% faster than the X1C. On a batch of identical parts, that difference compounds across every run — finishing the sixth iteration where the X1C is still on the fifth.
Active Motor Noise Canceling keeps operational noise below 50 dB — quieter than many open-frame printers at 200 mm/s. The H2S can run overnight in an office environment without disrupting the room. The built-in filament cutter handles AMS material changes faster than systems without cutters by eliminating the long purge tail on the outgoing strand.
Print the Whole Part, Not Half of It.
The H2S doesn’t split its attention between hotend racks or dual toolheads — every mm of its 340×320×340 mm envelope is available for a focused single-nozzle job. Some things just need more Z. The H2S gives it to you at a price no toolchanger can match.

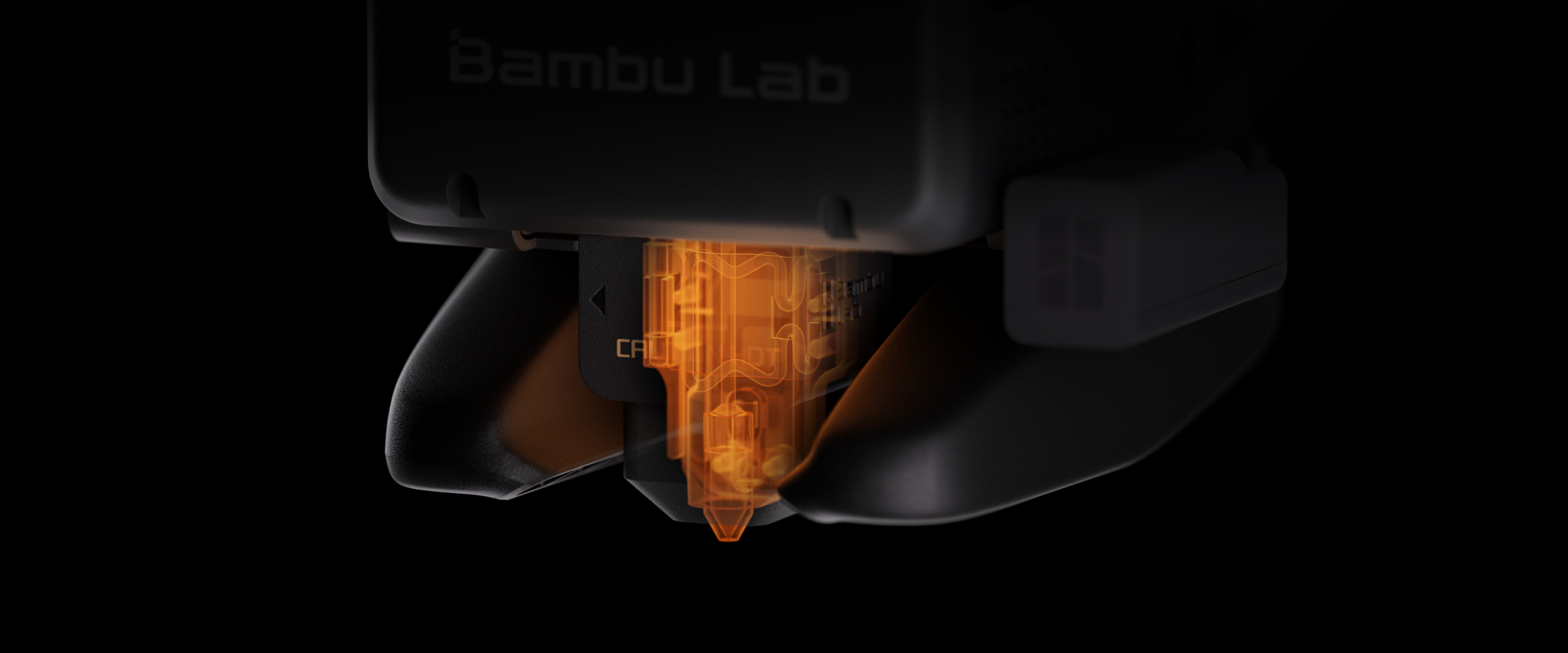

DynaSense Servo + Built-in Filament Cutter.
Closed-Loop Force. Built-in Cut. Real-Time Error Detection.

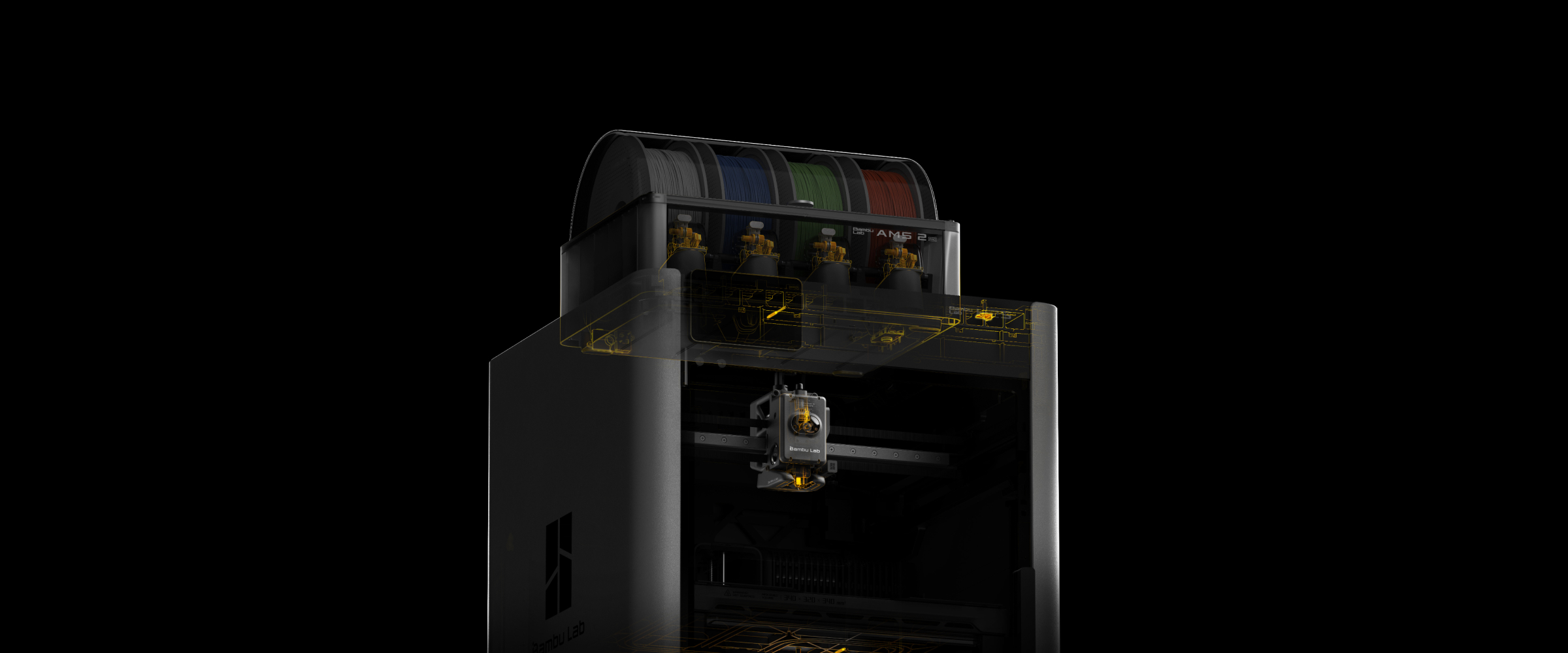

The DynaSense PMSM servo extruder delivers 10 kg of extrusion force — 67% more than a typical stepper — with position and resistance sampled at 20 kHz. That loop is what catches clogs and grinding jams before they become failed layers. With the optional Vision Encoder plate, motion accuracy drops below 50 μm across the full 340×320 mm bed.
The built-in filament cutter on the H2S goes beyond what most AMS printers offer: it cuts the outgoing filament tail cleanly before every material change, reducing the blob risk at the transition point and producing visibly cleaner color-change seams than systems that just retract. On jobs with frequent color changes across a large bed, that quality difference is consistent across the whole print.
65 °C Chamber, 350 °C Nozzle, Three-Mode Airflow.
Full Engineering Stack on the Largest Desktop Bed

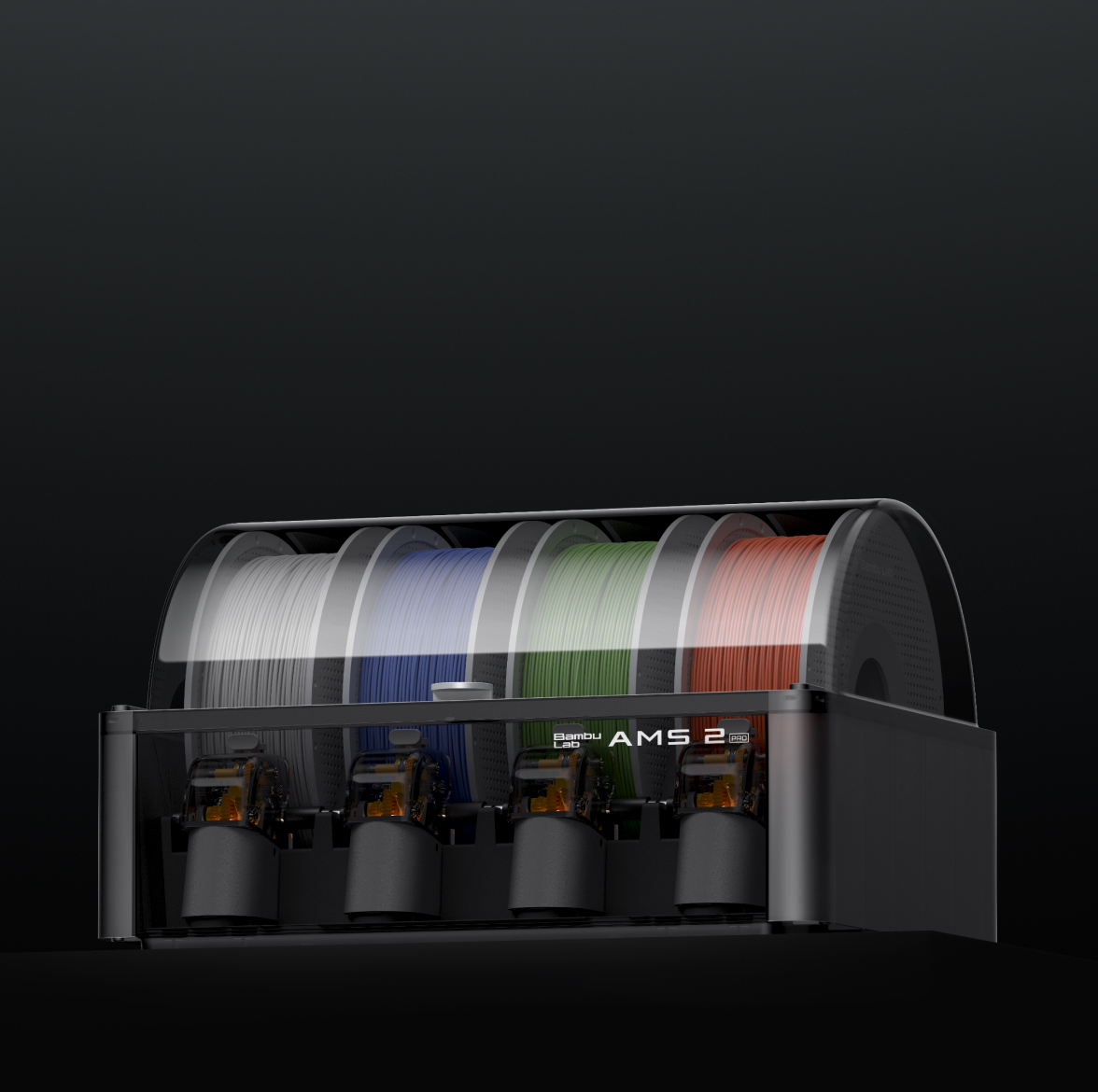

The H2S runs the same thermal envelope as the H2D and H2C — 350 °C nozzle, 65 °C actively heated chamber — with three-mode adaptive airflow: sealed high-temp mode for PA and PC, vented low-temp mode for PLA and PETG, and dedicated laser exhaust mode when the laser module is installed. The chamber maintains temperature from first layer to last, not just at the bottom of a tall print.

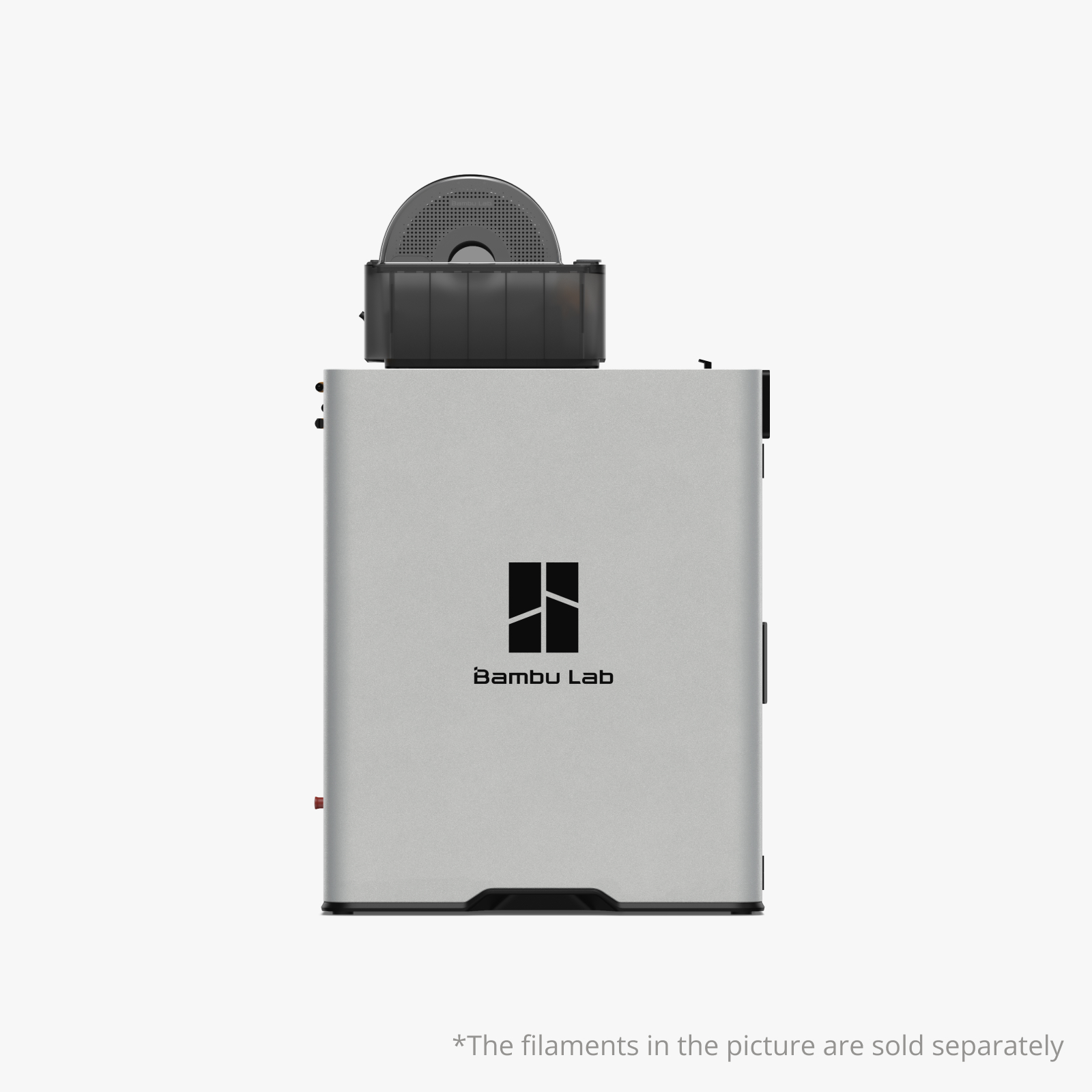

The H2S also includes AMS HT compatibility for storing moisture-sensitive filaments at up to 55 °C. On a 340 mm tall PA-CF print running 8 hours overnight, moisture-controlled storage means the last layer prints as cleanly as the first. The UL94 V-0 enclosure and three-layer filtration make it viable for engineering materials in shared spaces.

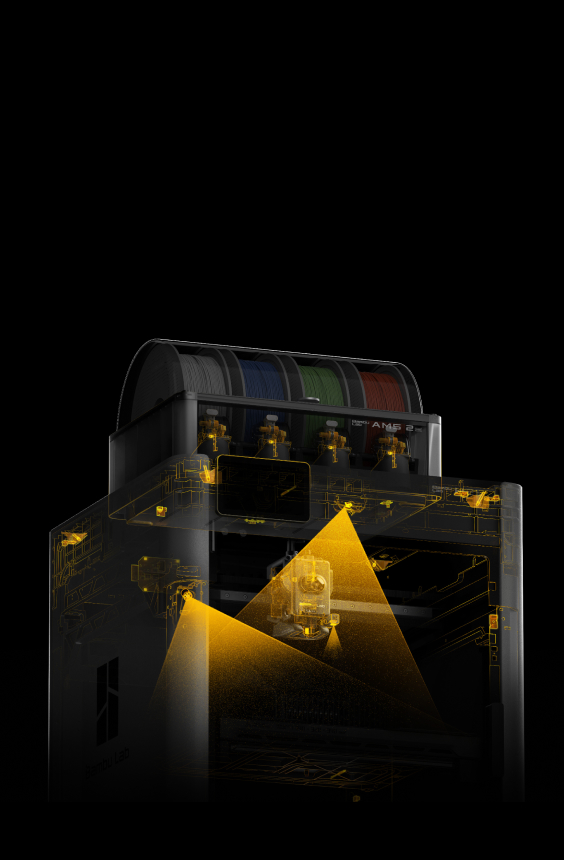

23 Sensors, 3 Cameras, AI Error Detection.
Catch the Problem Before It Ruins the Run
The H2S ships with 23 sensors monitoring the filament path, extruder, and chamber — plus three cameras (AI nozzle, overhead, and tool camera). Before every print, a pre-flight checklist verifies bed adhesion, filament loading, and nozzle state. During the print, a neural algorithm watches for spaghetti, air-printing, nozzle clumping, and clogged poop chutes using the nozzle AI camera feed.

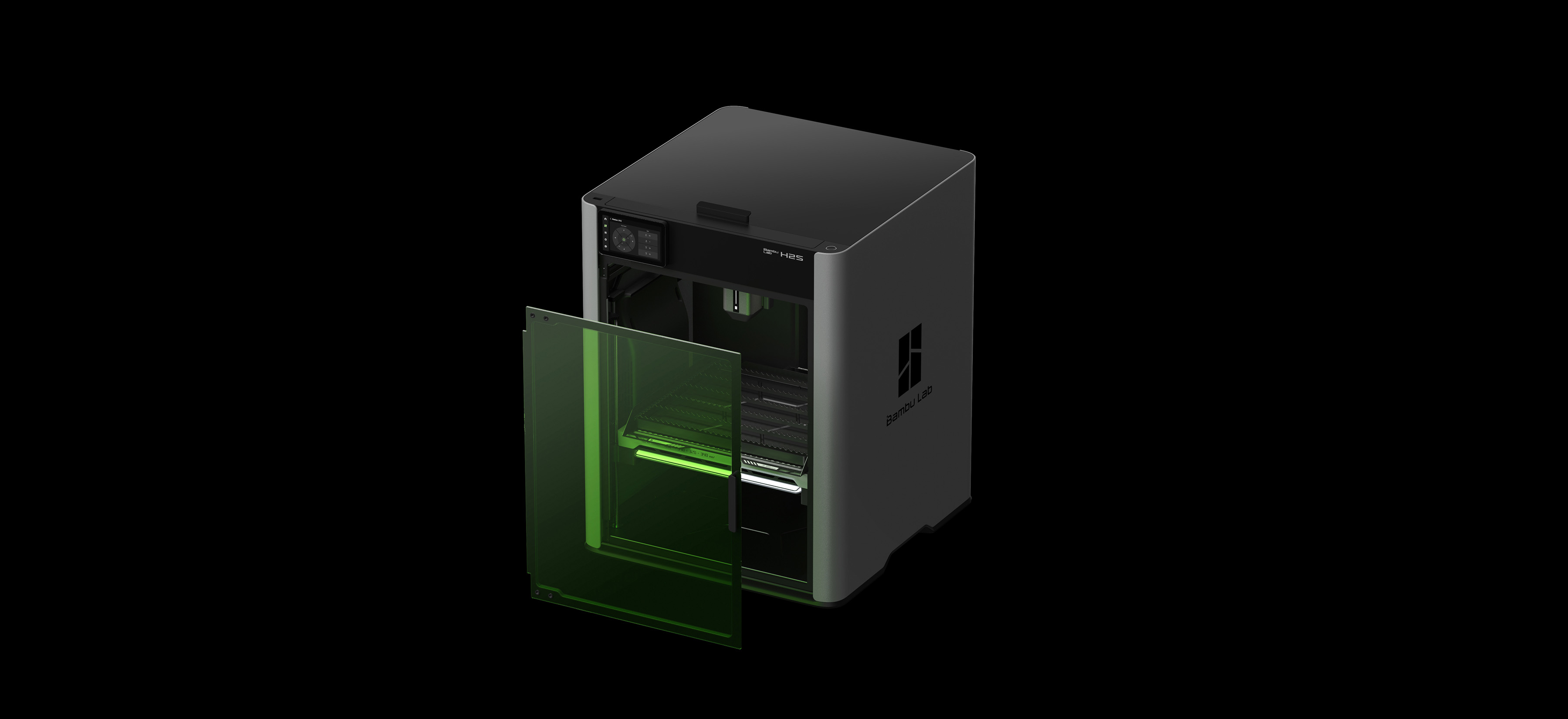

With the Laser Full Combo, the Bird’s Eye 8 MP camera adds Live Spatial Alignment for laser jobs — it reads the actual bed surface to position laser cuts relative to what’s already printed, even on warped or repositioned material. When something drifts mid-print on an 8-hour job, Bambu Handy shows you the alert before the whole run is lost.
Cloud, LAN-Only, or Air-Gapped — Your Call.
Security-Sensitive Workflows Supported
The H2S runs in three network modes: cloud-connected for remote monitoring from Bambu Handy, LAN-only for shared-workspace deployments, or fully offline for air-gapped or security-sensitive environments. Files transfer by USB stick, firmware updates install locally, and the machine operates normally without a cloud connection.
Developer Mode opens an MQTT port for third-party integrations. The H2S is cybersecurity-compliant with EU RED Article 3.3(d)(e) and ETSI EN 303 645 V2.1.1:2020 for regulated deployments. The 5-inch touchscreen handles all local controls without any cloud dependency.
Both Combos, Side by Side.

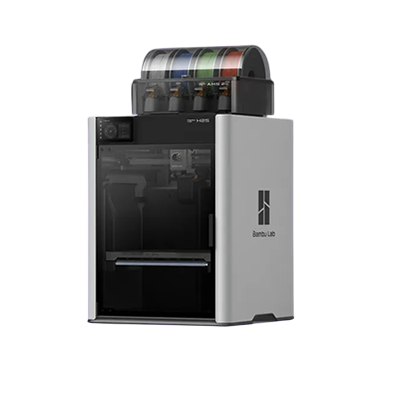

- H2S Printer 1×
- AMS 2 Pro 1×
- Textured PEI Build Plate 1×
- Spool Holder 1×
- 0.4 mm Single-Nozzle Hotend 1×
- Extra Nozzle 1×
- Accessory Box 1×

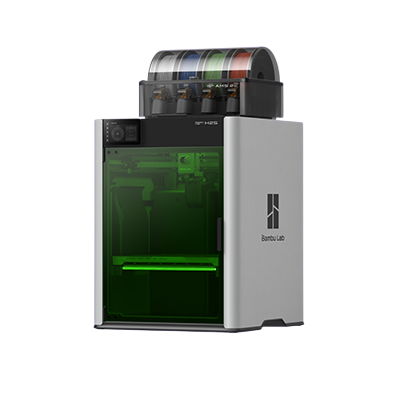

- Everything in the AMS Combo
- 10W Laser Module 1×
- Cutting Module with Pen Holder 1×
- Laser Platform 1×
- Cutting Platform 1×
- Bird’s Eye 8 MP Camera 1×
- Emergency Stop Button 1×
Note: The H2S supports a 10W laser only — there is no 40W option for the H2S. If you require 40W laser capability, see the H2D or H2C Laser Full Combo. Both combos ship from the Bambu Lab US warehouse. Processing is typically 1–3 business days before transit.
Questions about combos? See FAQ →Bambu Lab H2S — Full Specs.
| Build & Motion | |
| Printing Technology | FDM / FFF, enclosed CoreXY |
| Build Volume | 340 × 320 × 340 mm (120% larger than X1C) |
| Max Print Speed | 1,000 mm/s |
| Max Acceleration | 20,000 mm/s² |
| Speed vs X1C | ~30% faster on typical jobs |
| Motion Accuracy | < 50 μm (with optional Vision Encoder) |

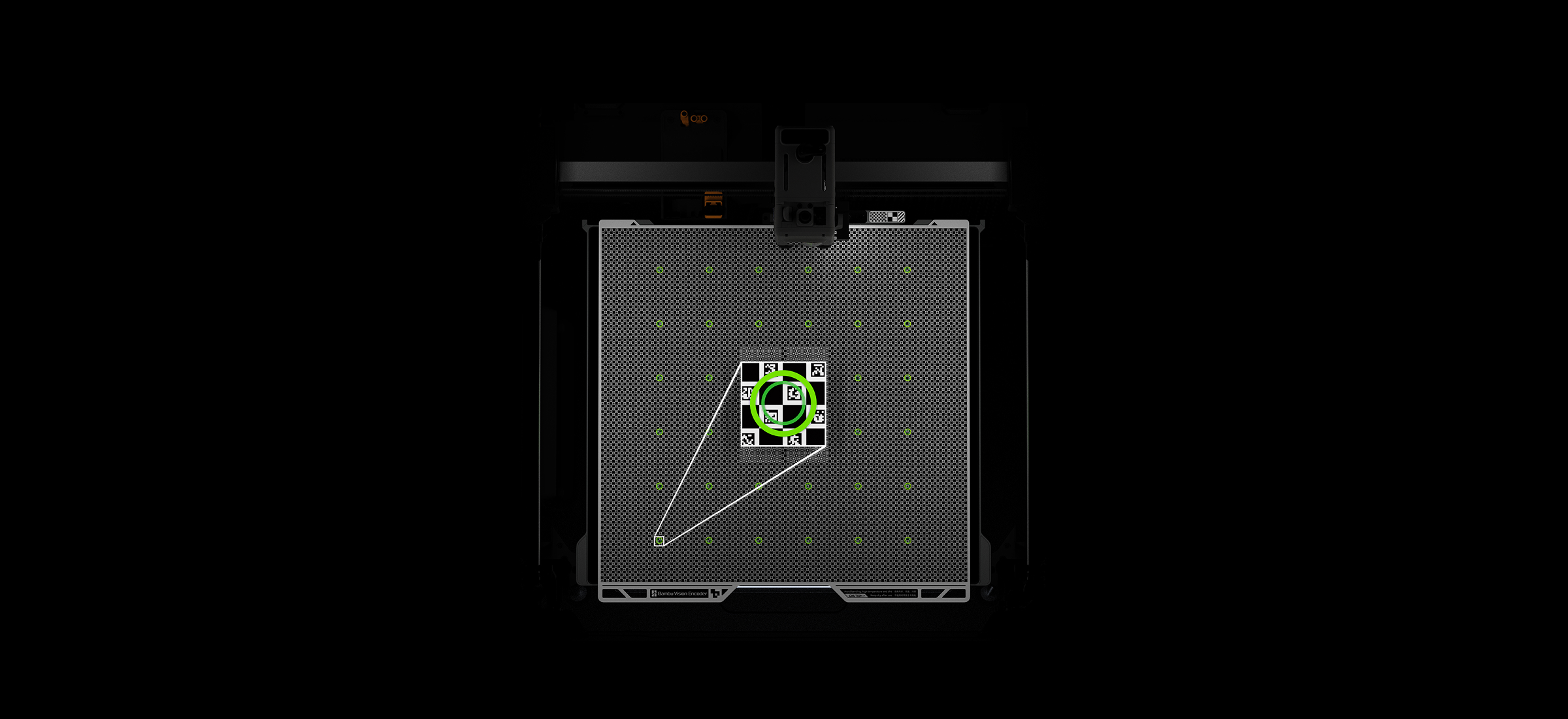

| Auto Bed Leveling | Automatic, inductive, hands-free |
| Thermal & Material | |
| Max Nozzle Temperature | 350 °C |
| Heated Chamber | 65 °C actively heated + three-mode adaptive airflow |
| Supported Nozzle Diameters | 0.2 / 0.4 / 0.6 / 0.8 mm |
| Nozzle Material | Hardened steel, all-metal |
| Filament Diameter | 1.75 mm |
| Supported Materials | PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS + CF / GF reinforced variants |
| Extrusion & Multi-Material | |
| Toolhead | Single-nozzle with built-in filament cutter |
| Extruder | DynaSense PMSM servo, 10 kg force, 20 kHz sampling |
| Filament Cutter | Built-in — trims outgoing filament tail on every AMS change |
| Max Filaments per Print | Up to 24 (parallel AMS 2 Pro + AMS HT) |
| Filament Runout Sensor | Yes — 23 sensors total |
| Build Plate | Textured PEI flexible steel (included) |
| Laser (Laser Full Combo only) | |
| Laser Module Option | 10W 455 nm blue laser only (no 40W option on H2S) |
| Cutting Depth | Up to 5 mm plywood |
| Engraving Speed | 400 mm/s |
| Connectivity, Safety & Sound | |
| Noise Level | < 50 dB (Active Motor Noise Canceling) |
| Cameras | 3 cameras (AI nozzle, overhead, tool); + 8 MP Bird’s Eye (Laser Edition) |
| Interface | 5-inch touchscreen |
| Connectivity | Wi-Fi · LAN · USB — cloud, LAN-only, and fully offline modes |
| Developer Mode | MQTT port access |
| Enclosure | UL94 V-0 flame-retardant die-cast aluminum alloy frame |
| Compliance | EU RED Article 3.3(d)(e), ETSI EN 303 645 V2.1.1:2020 |
| Physical | |
| Physical Dimensions | 492 × 514 × 626 mm |
| Recommended Space | 700 × 700 × 1,100 mm |
| Net Weight | 30 kg (AMS Combo) / 30.5 kg (Laser Edition) |
| Chassis | Die-cast aluminum alloy, steel, plastic, glass panels |
Common Questions About the H2S.
How is the H2S different from the H2D and H2C?+
All three share the enclosed CoreXY platform, 350 °C nozzles, and 65 °C heated chamber. The H2S is a single-nozzle machine with the largest build volume — 340×320×340 mm — and the lowest price in the H series. The H2D has a dual-nozzle toolhead for dedicated support material capability. The H2C adds the Vortek hotend-swap rack for near-zero purge on multi-color prints. If maximum build volume and speed at the best price is the priority, the H2S is the answer.
What is the build volume of the H2S?+
340×320×340 mm — the largest in the Bambu H series and 120% larger than the X1C by volume. The 340 mm Z height is what enables full-size helmet liners, speaker housings, and large props in a single print without splitting and bonding.
How fast is the H2S?+
The H2S reaches 1,000 mm/s with acceleration up to 20,000 mm/s². Bambu rates it approximately 30% faster than the X1C on typical jobs. Active Motor Noise Canceling keeps it below 50 dB — quieter than many open-frame printers running much slower speeds.
What materials can the H2S print?+
The 350 °C nozzle and 65 °C actively heated chamber support PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, and PPS, plus carbon-fiber and glass-fiber reinforced variants. The built-in filament cutter produces cleaner material transitions than systems without one.
Does the H2S support laser cutting? Is 40W available?+
The H2S Laser Full Combo ships with a 10W 455 nm blue laser. The H2S does not support the 40W laser module — that is available on the H2D and H2C only. The 10W module cuts up to 5 mm plywood and engraves at 400 mm/s. If you require 40W laser capability, the H2D Laser Full Combo or H2C Laser Full Combo is the right path.
How many colors can the H2S print?+
Up to 24 filaments via stacked AMS units (up to 4× AMS 2 Pro + 8× AMS HT = 24 slots). RFID-tagged spools auto-register material profiles. The built-in filament cutter produces cleaner transitions than AMS systems without cutters.
What is the DynaSense extruder?+
DynaSense is Bambu Lab’s PMSM servo extruder delivering 10 kg of extrusion force — 67% more than a stepper — with 20 kHz position and resistance sampling. The H2S also has a built-in filament cutter that clips the outgoing filament tail on every AMS material change for cleaner transitions.
What installation and support does Rev1 provide?+
The H2S arrives fully assembled and self-calibrates at first boot. Rev1 supports customers remotely by phone and video from Auburn Hills, MI — slicer setup, AMS stacking, material profiles, and troubleshooting. We can schedule remote sessions or host you at our Auburn Hills facility. Call (248) 707-2950.
Is business financing available?+
Yes. Rev1 offers business financing with 72-month terms. Estimates on the configurator are based on 72 months at 8 % APR and are estimates only. Personal buyers can use Affirm or Klarna at checkout.
Rev1 can walk through the H2S’s capabilities and whether the volume or speed advantage matters for your specific jobs — before you order.
Why Buy the Bambu Lab H2S Through Rev1 Technologies
Rev1 Technologies is an authorized Bambu Lab reseller serving engineers, manufacturers, educators, and production shops across the United States. We help you configure the H2S for your volume and speed requirements, train your team on Bambu Studio and AMS management, and support the printer from Auburn Hills — so your first large-format job runs right.
Our engineers review your target parts — sizes, materials, AMS stacking, and laser requirements — and recommend the right H2S configuration before you order. We map chamber temps, slicer presets, and AMS slot assignments to your real jobs.
Remote setup, first-print walkthrough, and large-format workflow training for your team via phone and video. We stay on the line until your H2S is slicing, printing, and running reliably at scale.
Direct access to Rev1’s technical team for troubleshooting, firmware, and print issues. (248) 707-2950 — not a queue. We coordinate Bambu Lab warranty and parts so you stay printing.
Send us your STL and material targets. We’ll print a representative job and ship the result — validate large-format surface quality and AMS performance before you issue a PO.
Visit our Auburn Hills facility. See the H2S running large-format jobs on a correctly configured machine — the same setup we ship to customers.
When you need dual-nozzle or Vortek capability, Rev1 carries the full H-series line plus materials, AMS add-ons, and enterprise scanning — one partner for scaling fabrication capability.
H2S vs. H2D vs. H2C vs. Creality K2 Plus.
The H2S is the price-performance leader in the H series: the largest build volume, the fastest speeds, and the lowest entry price — without the cost of Vortek or dual-nozzle capability. Against the Creality K2 Plus, the H2S wins on chamber temperature (active vs passive), noise level, filament cutter, and AI monitoring depth, at a comparable price point.
| Specification | Bambu Lab H2S | Bambu Lab H2D | Bambu Lab H2C | Creality K2 Plus |
|---|---|---|---|---|
| Build & Speed | ||||
| Entry Price at Rev1 | From $1,649 | From $2,249 | From $2,649 | ~$1,199 |
| Build Volume | 340 × 320 × 340 mm (largest in H series) | 325 × 320 × 325 mm | 325 × 320 × 320 mm | 350 × 350 × 350 mm |
| Max Print Speed | 1,000 mm/s (fastest in H series) | 600 mm/s (high-flow hotend, optional) | Not published as single spec | ~600 mm/s |
| Multi-Material Architecture | Single nozzle — AMS purge-based + built-in cutter | Dual nozzle — dedicated support material | Vortek hotend swap — near-zero purge | AMS purge-based (no built-in cutter) |
| Max Colors | Up to 24 (stacked AMS) | Up to 25 (dual nozzle + AMS) | Up to 24 (Vortek + AMS) | Up to 16 (stacked AMS) |
| Thermal & Engineering Materials | ||||
| Max Nozzle Temp | 350 °C | 350 °C | 350 °C | 350 °C |
| Heated Chamber | 65 °C active, 3-mode adaptive airflow | 65 °C active, adaptive airflow | 65 °C active, adaptive airflow | 60 °C passive |
| Noise Level | < 50 dB (Active Motor Noise Canceling) | Not published | Not published | Not published |
| Automation & Rev1 Advantage | ||||
| Filament Cutter | Built-in — every material change | Not specified | Not applicable (Vortek) | Not included |
| AI Error Detection | 23 sensors + 3 cameras; neural detection | 15 sensors + nozzle AI camera | 59 sensors + 3 cameras (Laser Edition) | AI camera; fewer sensors |
| Laser Option | 10W only | 10W or 40W | 10W or 40W | Not available |
| U.S. Partner Support | Rev1 Technologies — authorized Bambu Lab reseller, U.S. phone & video support (Auburn Hills, MI) · (248) 707-2950 | Rev1 Technologies (same reseller) | Rev1 Technologies (same reseller) | Creality direct / authorized reseller |
Competitor specifications from published manufacturer data at time of publication. Rev1 pricing is the authorized reseller price. Comparison is for informational purposes only.
Send Rev1 your target part sizes, material mix, and throughput requirements. We’ll tell you which H-series printer fits — including when the volume advantage of the H2S outweighs the multi-material advantages of the H2D or H2C.
